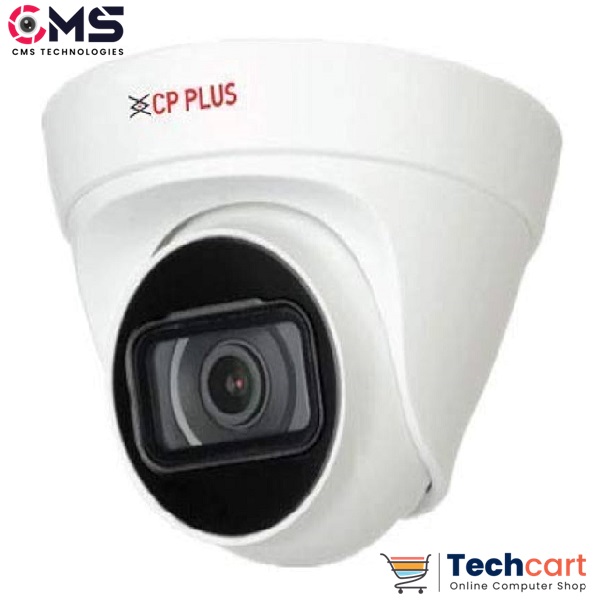

Cam CP Plus IP Dual Light Dome UNC-DA21PL3C-L-Y
Sale!
Cam CP Plus IP Dual Light Dome UNC-DA21PL3C-L-Y
Original price was: 4,499.00. 2,800.00Current price is: 2,800.00.
| Specifications:- | |
| Image Sensor | 1/3.2” 2MP PS CMOS Image Sensor (0.7937cm) |
| Minimum Illumination | 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W,30 IRE) |
| Effective Pixels | 1920 (H) × 1080 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Lens Type | Fixed-focal |
| Gain Control (AGC) | Auto |
| Lens | 3.6mm lens |
| DORI Distance | Lens 3.6 mm: 51.9 m (Detect), 20.8 m (Observe), 10.4 m (Recognize ), 5.2 m (Identify ) |
| Close Focus Distance | 0.9m |
| IR Control | Auto, Manual |
| Dual LED Number | 2 (Multi-core (IR + warm) light) |
| Lens Mount | M12 |
| Max Aperture | F1.6 |
| S/N Ratio | >56dB |
| Iris Control | Fixed |
| Back Light Comp. | BLC / HLC / DWDR |
| Angle of view | 3.6 mm: H: 87°; V: 47°; D: 102° |
| Encode Strategy | Interstream, H.264+ |
| Noise Reduction | 3D-DNR |
| Motion Detection | OFF/ON (4 areas rectangular) |
| Privacy Mask | 4 areas |
| Day/Night | Color/B/W |
| ROI | Support (4 areas) |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Storage | FTP |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps |
| Ethernet | RJ-45 (10/100Base-T) |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception |
| User/Host | 6 Users (Total bandwidth: 24 Mbps) |
| IR Range | IR Range of 30 Mtr |
| Warm Light Range | Warm Light Range of 15 Mtr. |
| Mirror Function | Support |
| Browser | IE, Chrome, Firefox |
| Smart Phone | iPhone, iPad, Android Phone |
| Audio | Built-in Mic |
| Operating Temperature | -40°C to +50°C (-40 °F to +122 °F) |
| Operating Humidity | ≤95% |
| Power Source | 12 VDC/PoE |
| Power Consumption | <4.5W |
| Weatherproof Standard | IP67 |
| Storage Temperature | -40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Dimension | 103.2 mm × 109.9 mm |
| Casing | Plastic |
| Weight | 0.25kg |
Description:-
- 1/3.2” 2MP PS CMOS Image Sensor (0.7937cm)
- Max. 2MP (1920 × 1080) @25/30fps
- Instastream, H.264 dual-stream encoding
- DWDR, Day/Night, 3D NR, ROI, BLC, HLC, Digital watermarking
- Support Built-in Mic
- Support Motion Detection
- 3.6mm Fixed lens
- IR Range of 30 Mtrs, Warm Light Range of 15Mtrs. IP67
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro Lite
Out of stock
